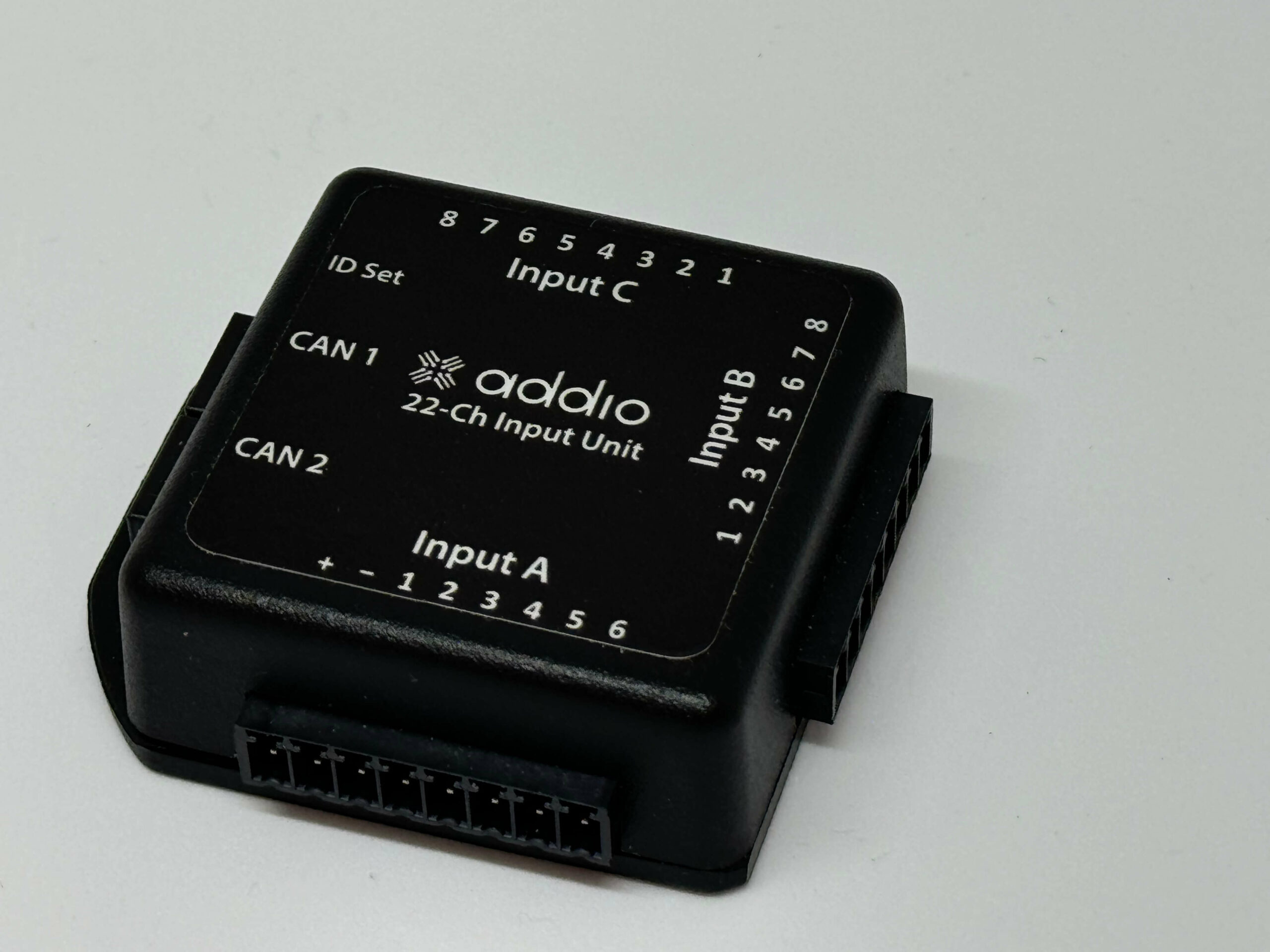

As an accessory to the ADV DRBs, there is an input unit with 22 inputs that connects to the DRBs COM/CAN port.

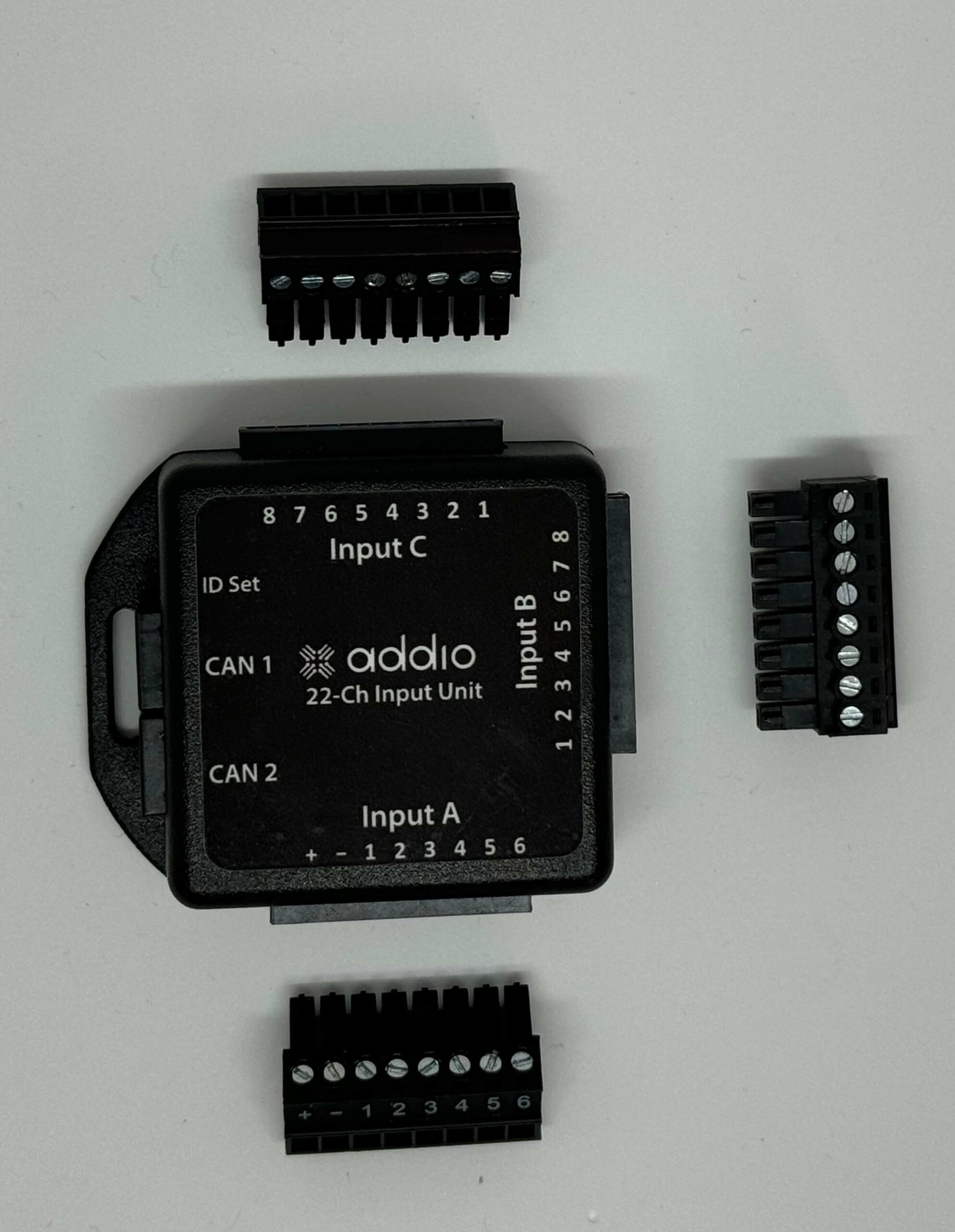

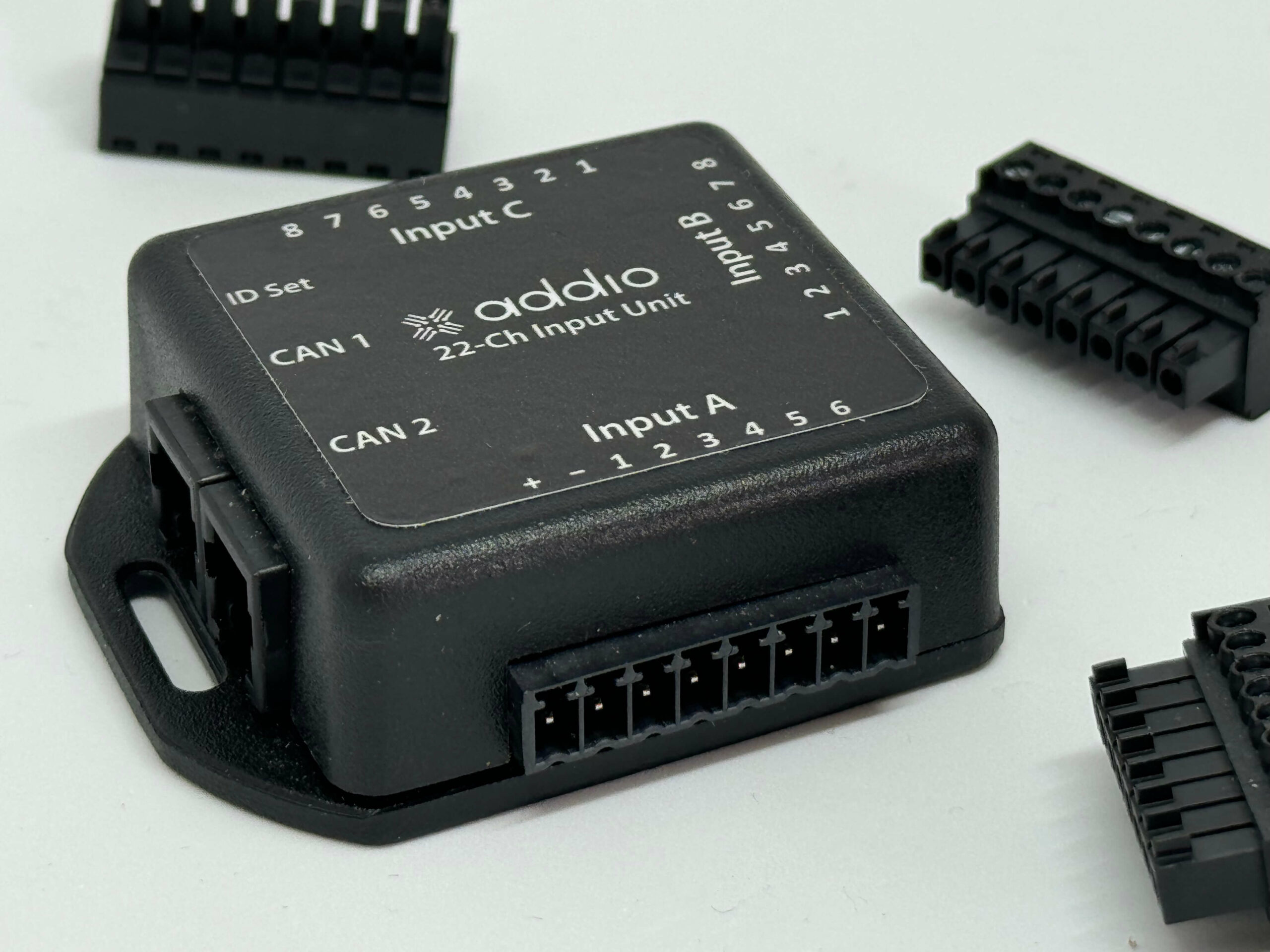

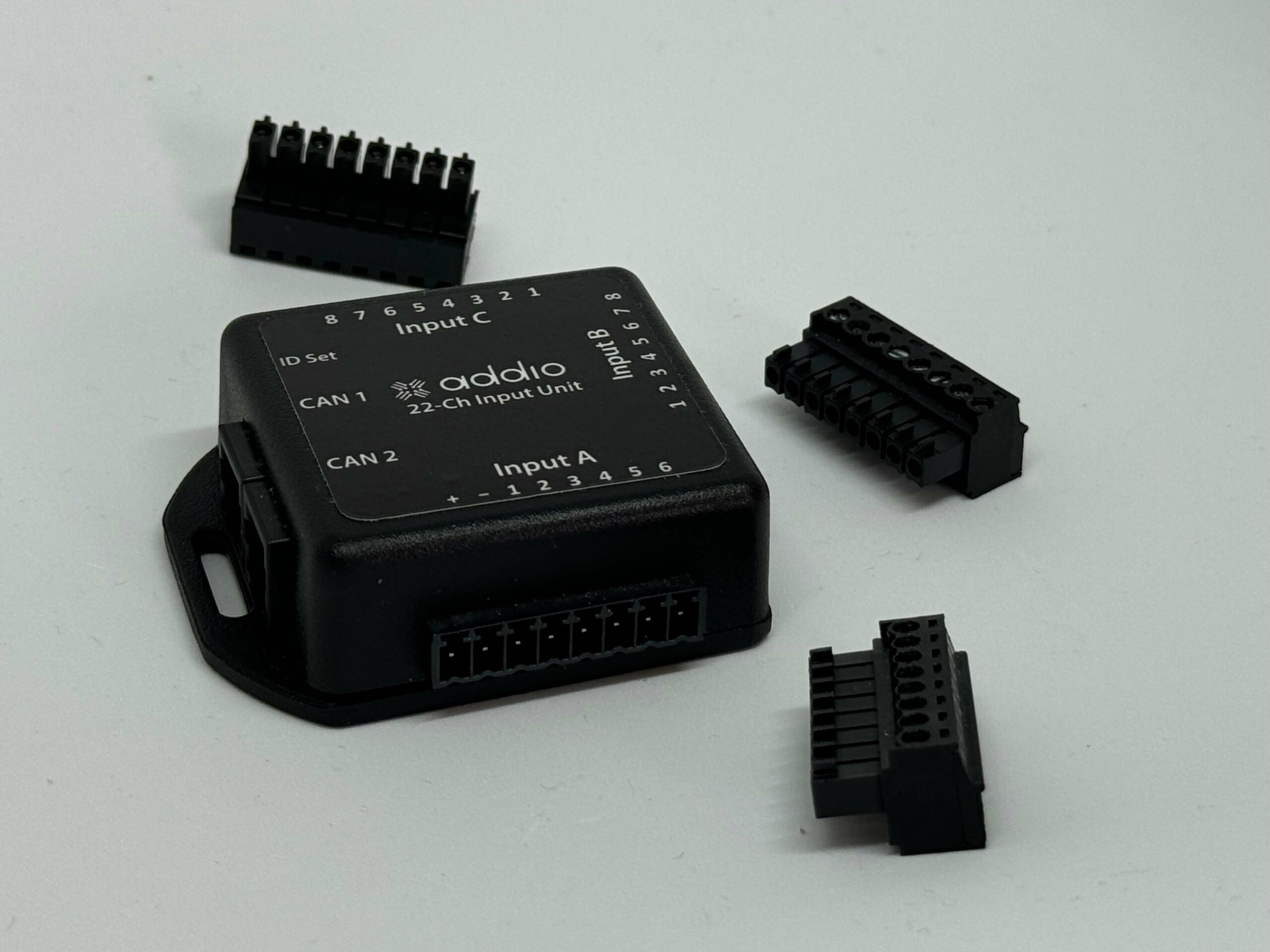

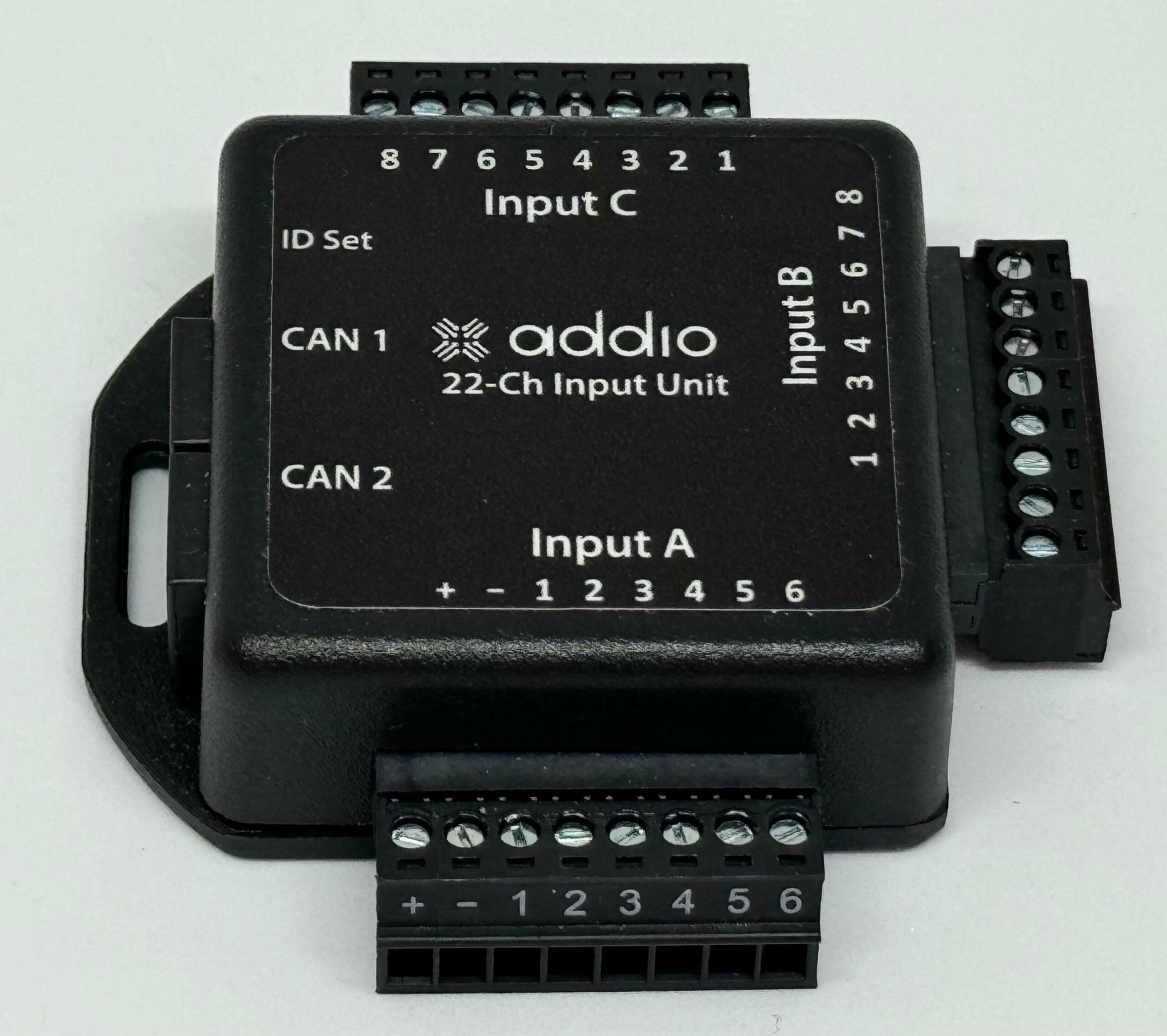

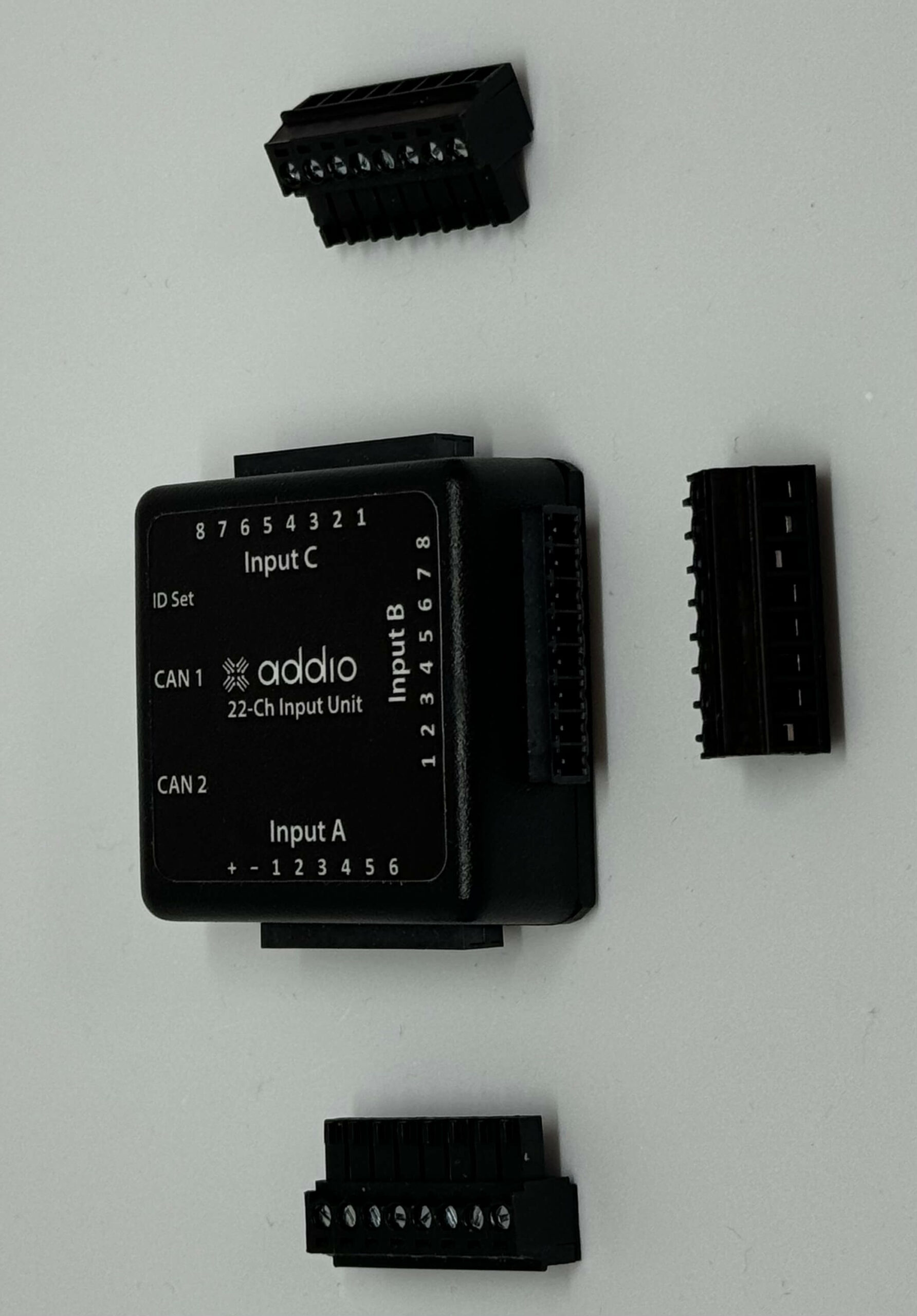

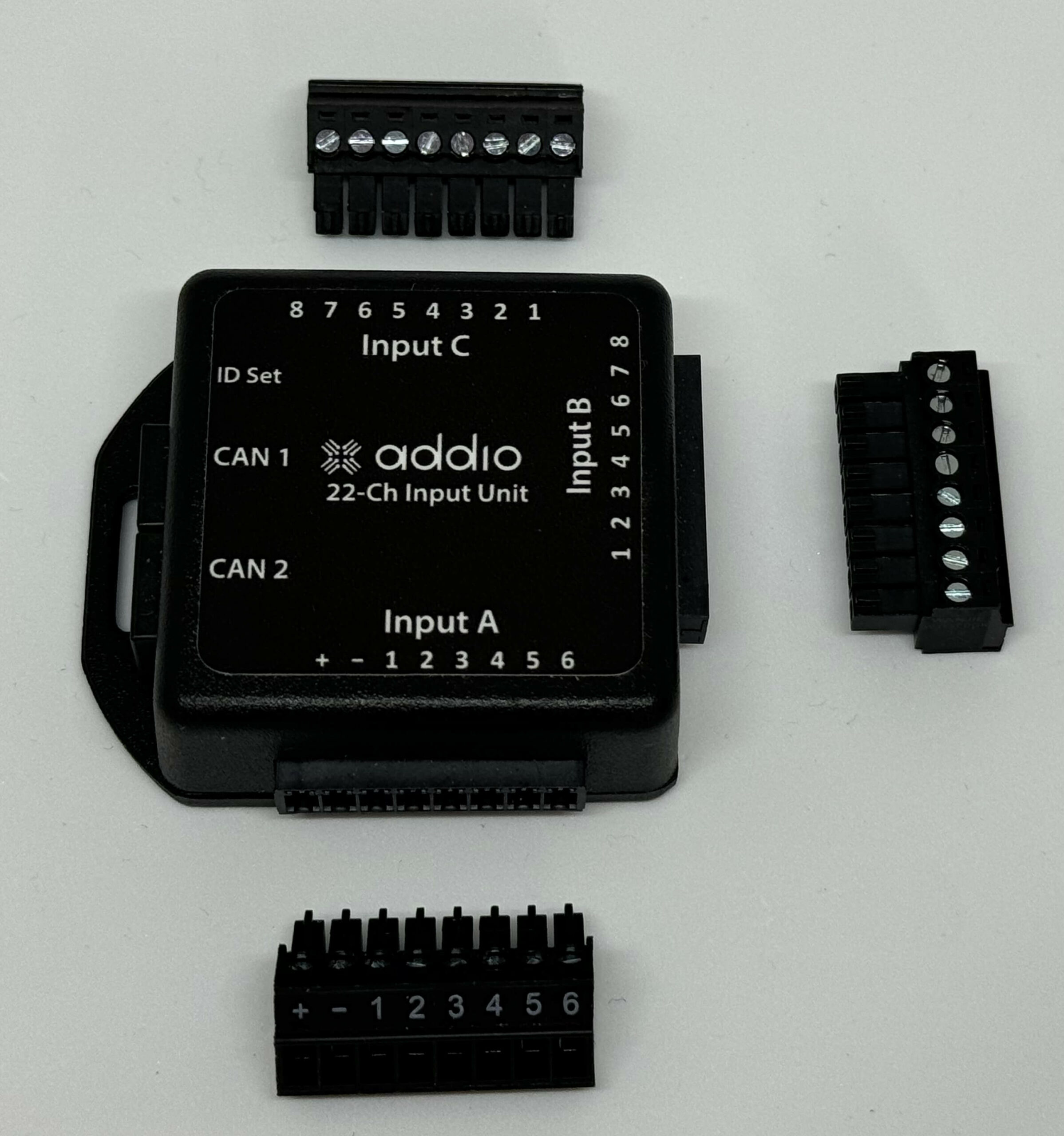

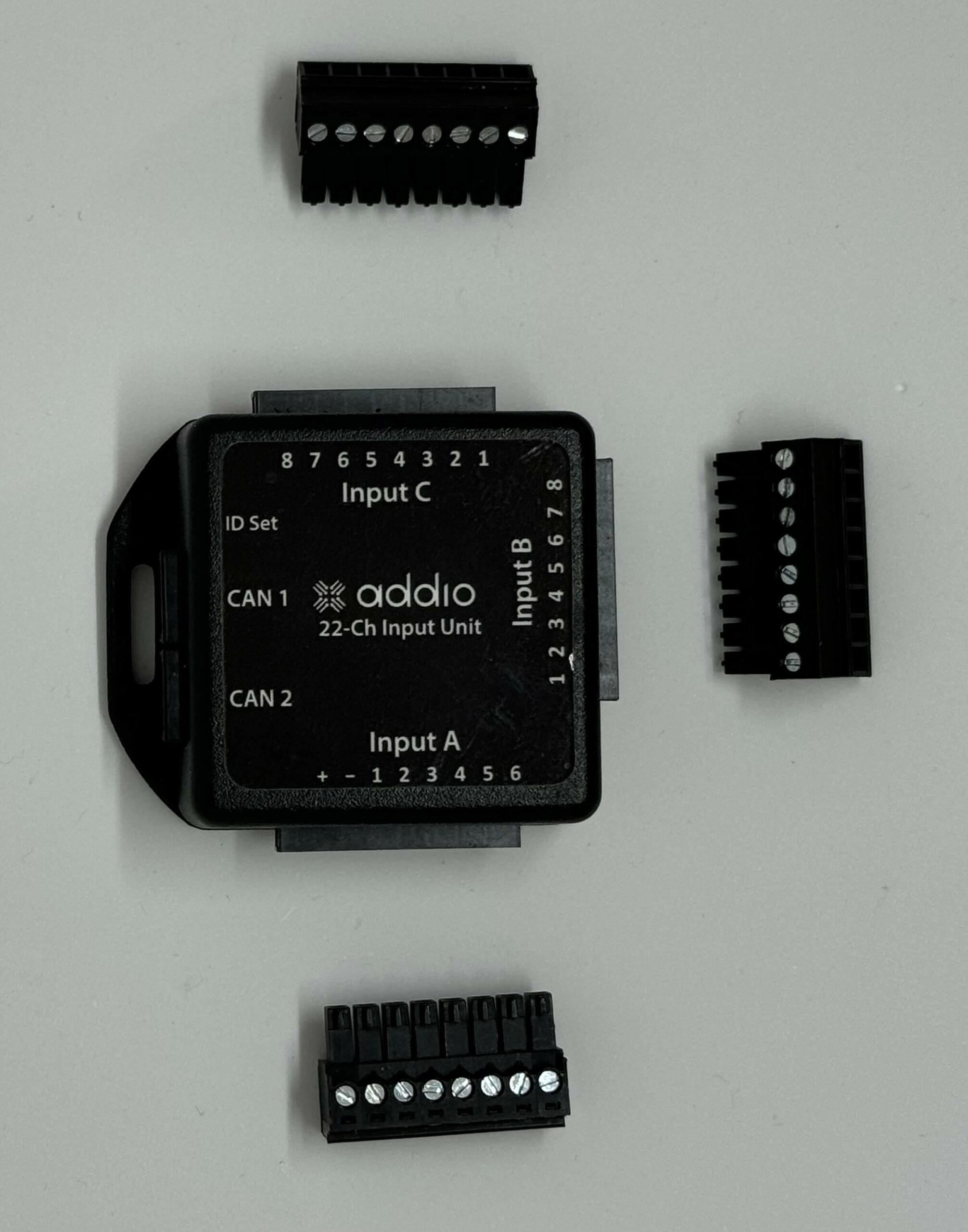

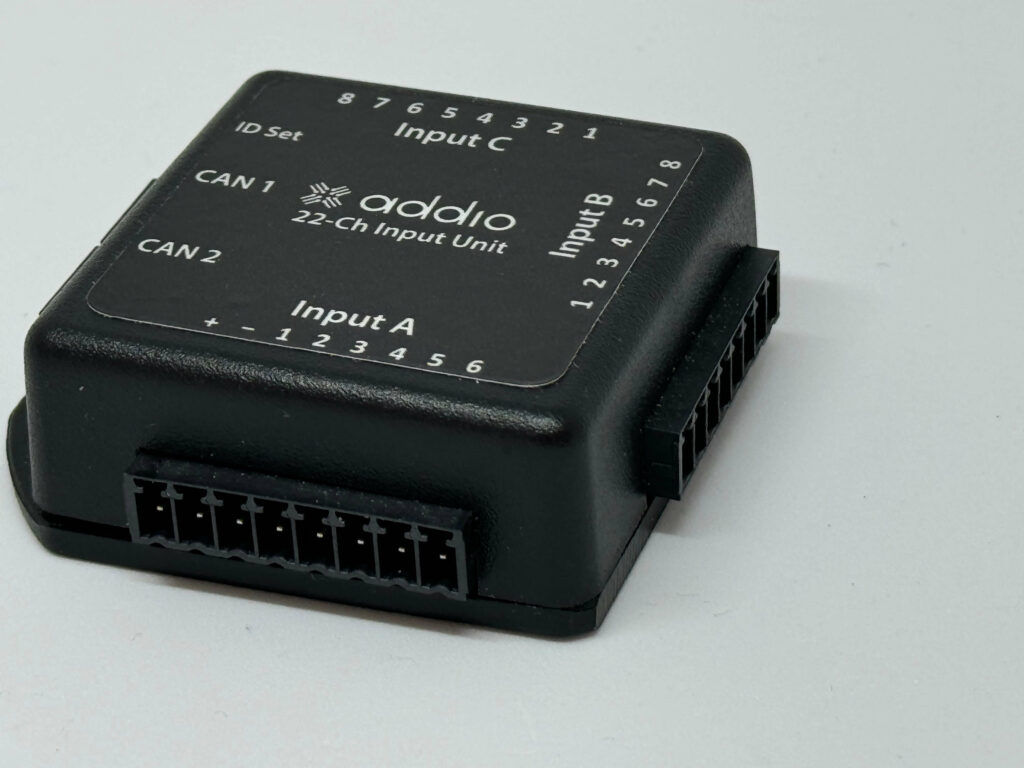

The unit features 3 detachable 8-pin connectors. The inputs are labeled A, B, and C, where input A has 6 inputs along with plus and minus power connections that can be used to power external push buttons. Inputs B and C each have 8 inputs, numbered 1-8.

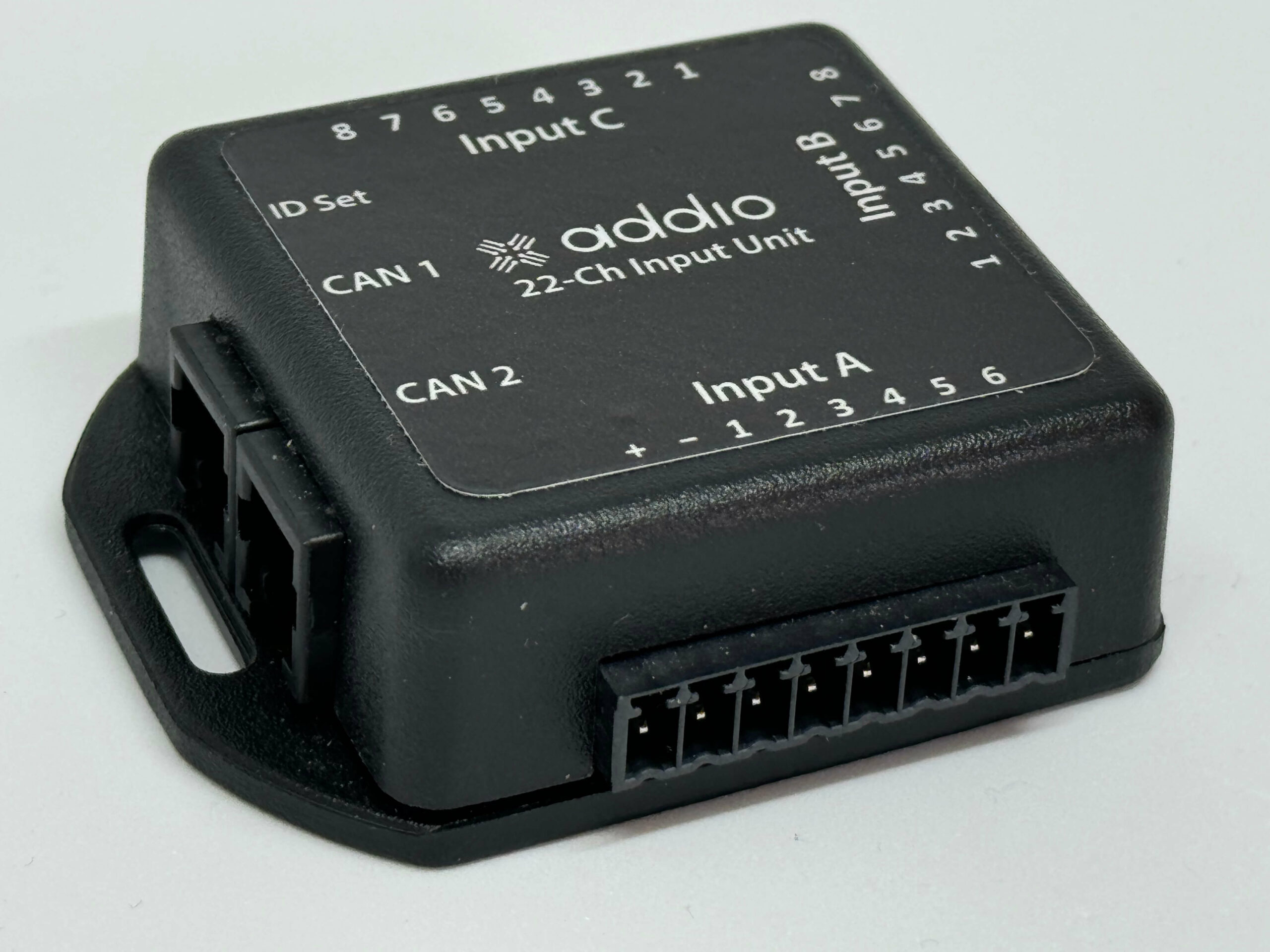

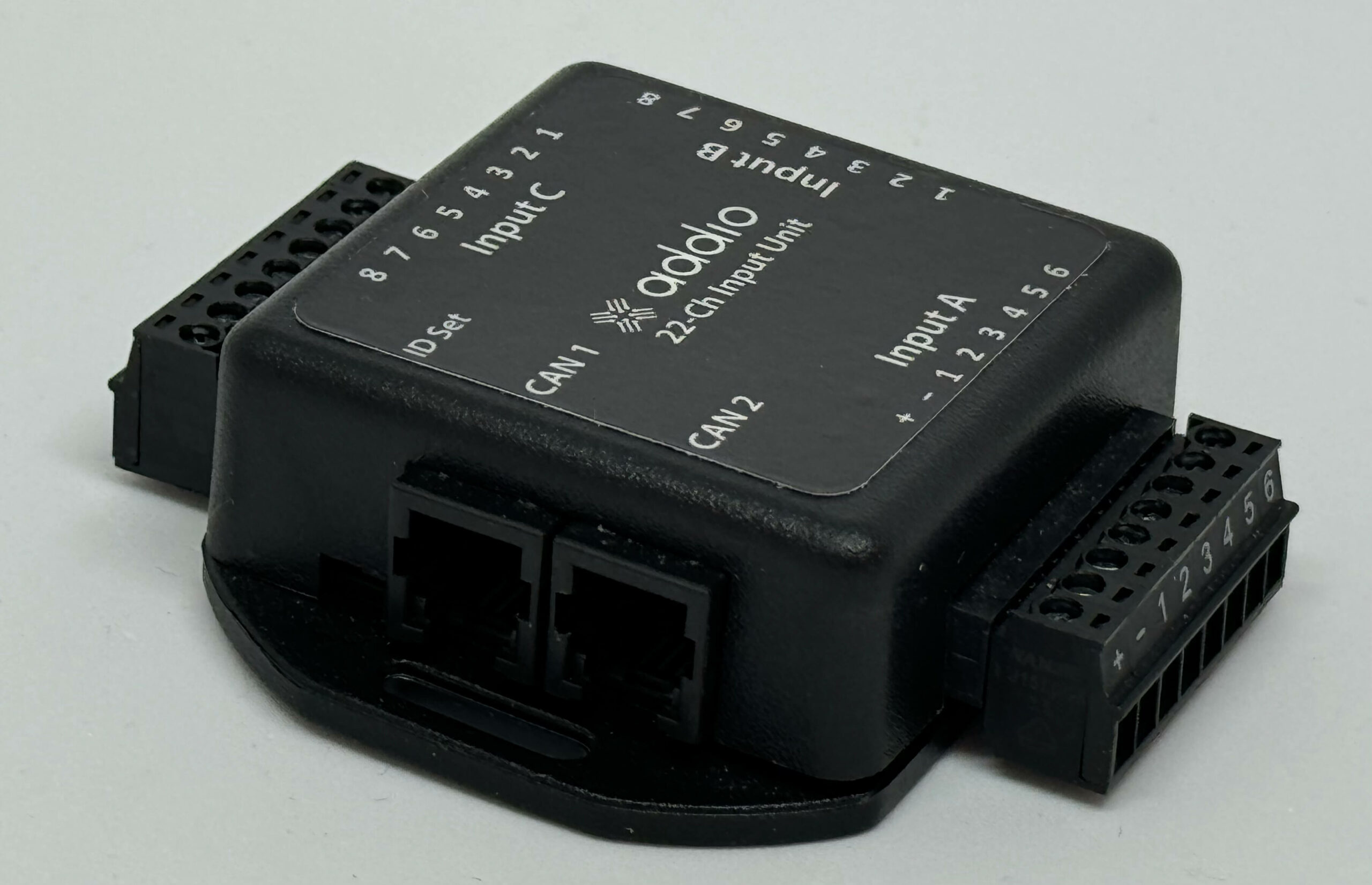

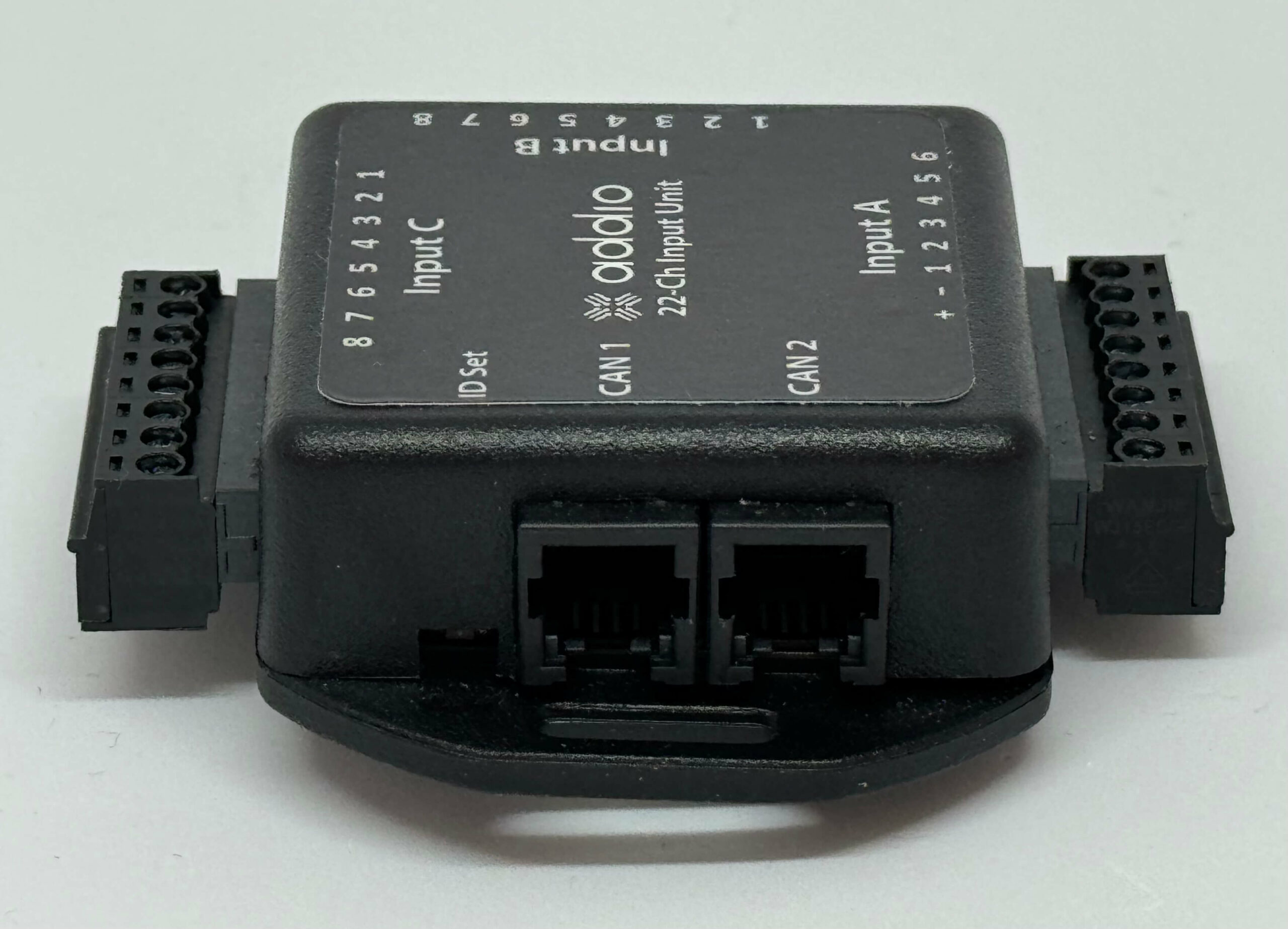

The communication port consists of dual RJ-10 connectors, which are identical and connected in parallel, allowing either connector to be used.

Create your own keypad
If you want to create your own keypad with up to 22 customizable buttons, such as rugged buttons for outdoor use, you can connect the individual buttons to this unit, which is then connected to the DRB unit via a simple cable (via CANBus).

In an Addio system, 2 units can be connected, allowing you to have 22 unique functions in parallel across two identical keypads
